➤ Used TOS WHN 13.8 CNC For sale | gindumac.com

Show in original language

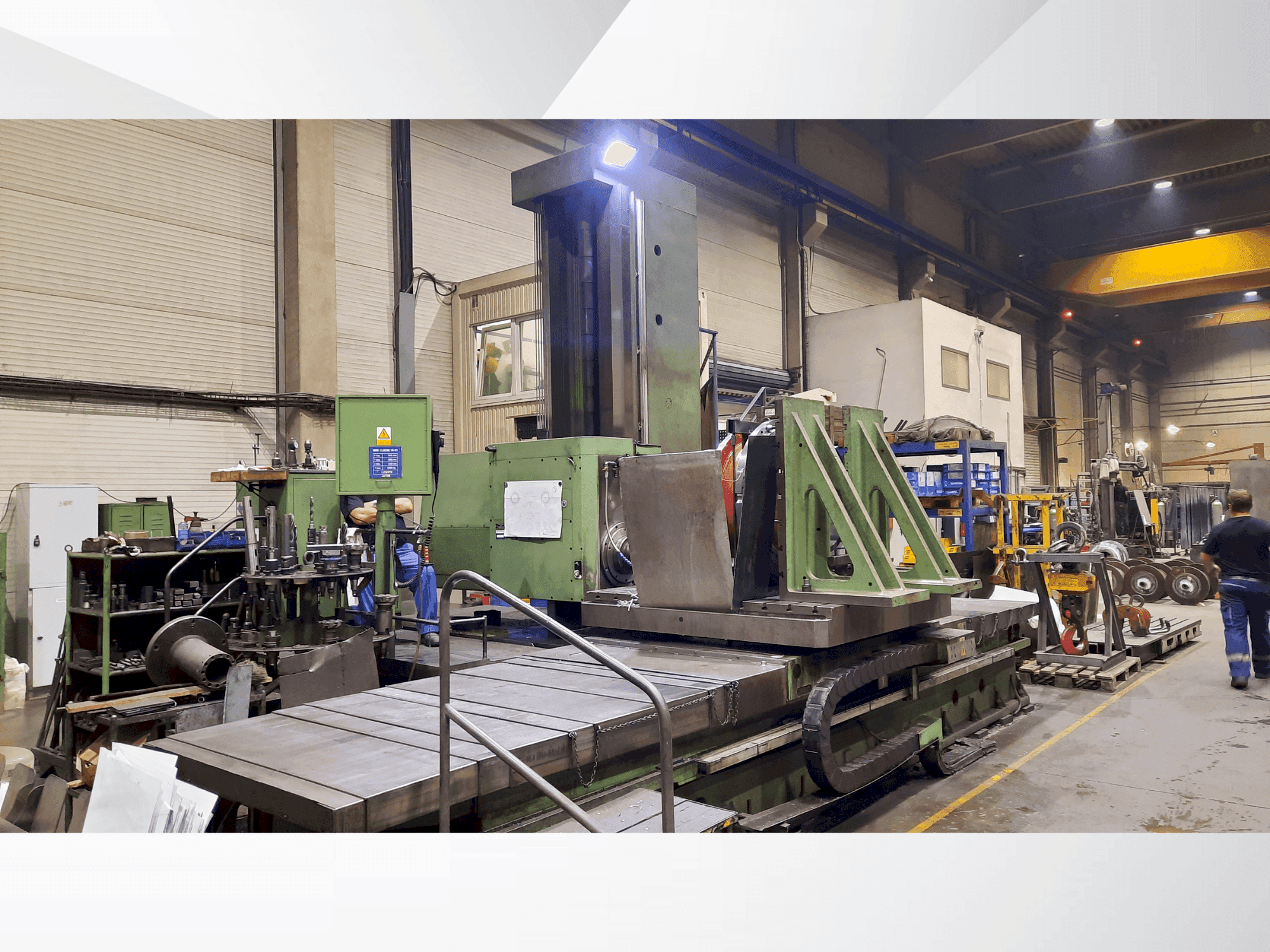

This 4-axis TOS WHN 13.8 CNC boring machine was manufactured in 1986 and retrofitted in 2009 with a Heidenhain iTNC 530 control unit. It features a large table size of 1600x1800 mm and can handle workpieces up to 12000 kg. X-axis movement is 3500 mm, Y-axis is 2000 mm, and Z-axis is 1250 mm. For more information about this boring machine, please reach out to us.

Overview

brand: TOS
year: 1986
MODEL: WHN 13.8 CNC
application type: Other Machine Tools
Location: Czech Republic
machine type: Boring Machine (Metal)
availability: Immediately
control unit brand: HEIDENHAIN

Technical Information - TOS WHN 13.8 CNC

General Data

Machine weight: 38000 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 800 rpm 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 3500mm
Y-AXIS Movement: 2000mm
Z-AXIS Movement: 1250mm

Table

Outer length: 1600 mm
Outer width: 1800 mm
Table load: 12000 kg

Additional equipment

- Retrofitted with Heidenhain iTNC 530 in 2009

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Large x, y, z-axis movement for handling sizable workpieces
- - High capacity table suitable for heavy loads
Qualitative Machine Benefits:
- - Retrofitted control unit for enhanced precision and control

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
