UNION BFT 110 NC

Photo Gallery

UNION - BFT 110 NCDE-OTH-UNI-1992-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used UNION BFT 110 NC For Sale | gindumac.com

Show in original language

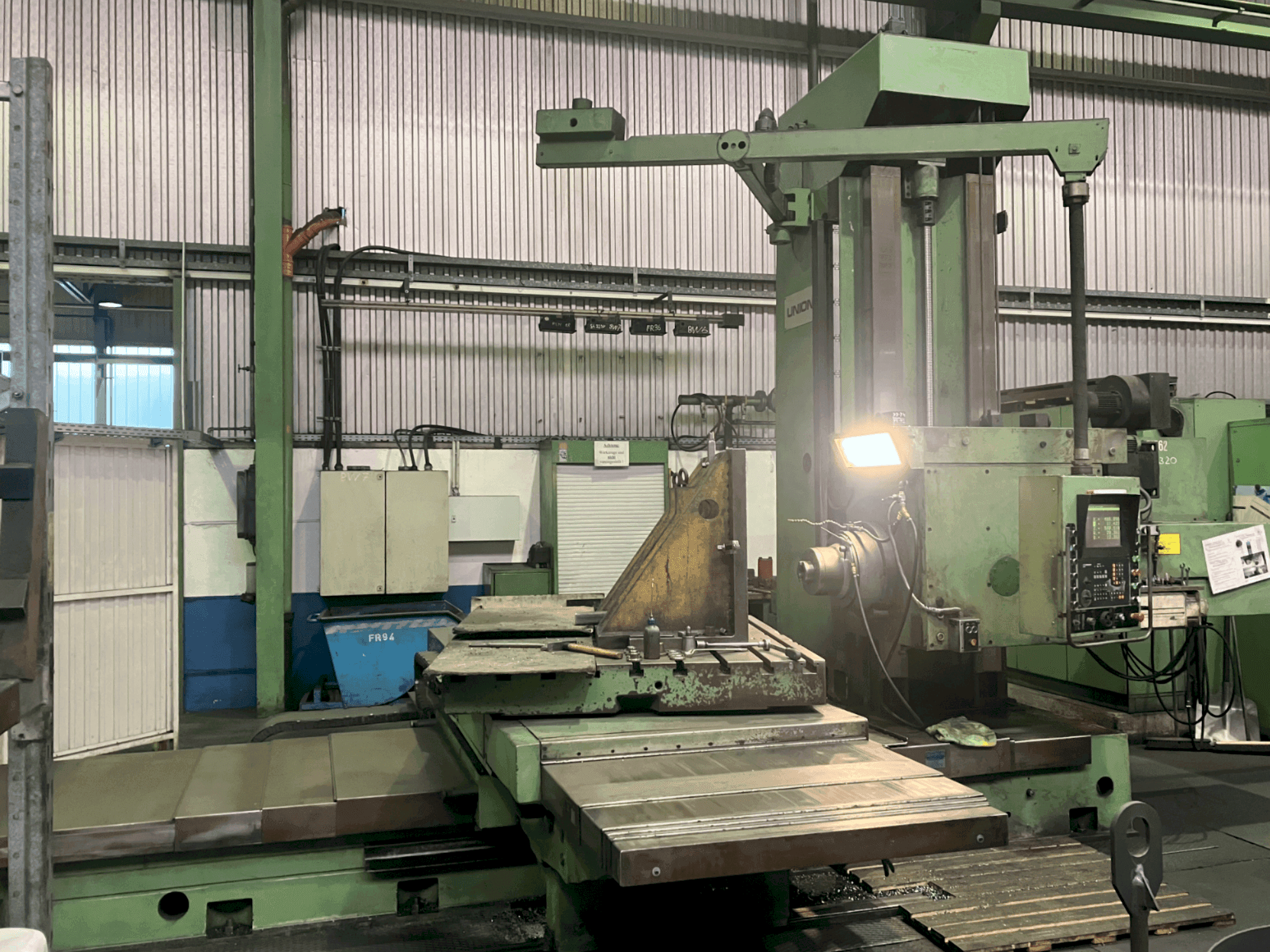

This 5-axis UNION BFT 110 NC boring machine was manufactured in 1992. It features a drilling spindle diameter of 110 mm, ISO 50 tool mount, and a faceplate diameter of 700 mm. Capable of handling a maximum clamping weight of 6300 kg, it offers a spindle speed up to 1250 min⁻¹ and a rapid traverse rate on the Y-axis of 6300 mm/min. If you are looking to get high-quality boring capabilities, consider the UNION BFT 110 NC machine we have for sale. Contact us for more information.

Overview

brand: UNION
year: 1992
MODEL: BFT 110 NC
production hours: 0
application type: Other Machine Tools
Location: Germany
machine type: Boring Machine (Metal)

Technical Information - UNION BFT 110 NC

General Data

Machine weight: 22000–30000 kg

Main drive

Spindle motor power: 33 kW
Number of axis: 5

Movement

X-AXIS Feed Force: 18000 N
X-AXIS Rapid traverse: 6300 mm/min
Y-AXIS Feed Force: 18000 N
Y-AXIS Rapid traverse: 6300 mm/min
Z-AXIS Feed Force: 25000 N
Z-AXIS Rapid traverse: 4300 mm/min
W-Axis Feed Force: 10000 N
W-Axis Rapid traverse: 3150 mm/min
B-AXIS Rapid traverse: 4900 mm/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Peak current demand for motor startup: 300 a
- - Speeds (stepless): drilling spindle (4 ranges): 6. 3–1250 min⁻¹ drilling spindle (2 ranges): 6. 3–315 min⁻¹
- - Maximum drilling diameter: 630 mm // maximum facing diameter: 1250 mm
- - Power supply voltage: 380 v ac ±10% // frequency: 50 hz
- - Turret maximum drilling diameter: 630 mm
- - Clamping surface dimensions: 1250 x 1400 mm, 1400 x 1600 mm
- - Maximum clamping weight with uniform load distribution: 6300 kg
- - Clamping table t-slots: width: 28 mm distance: 160 mm centering diameter: 100 n6 mm
- - Rotational movement: 360°
- - Optical table positioning: 4 x 90°

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
