UNION BFT 110 (1996) Boring machine

Show in original language

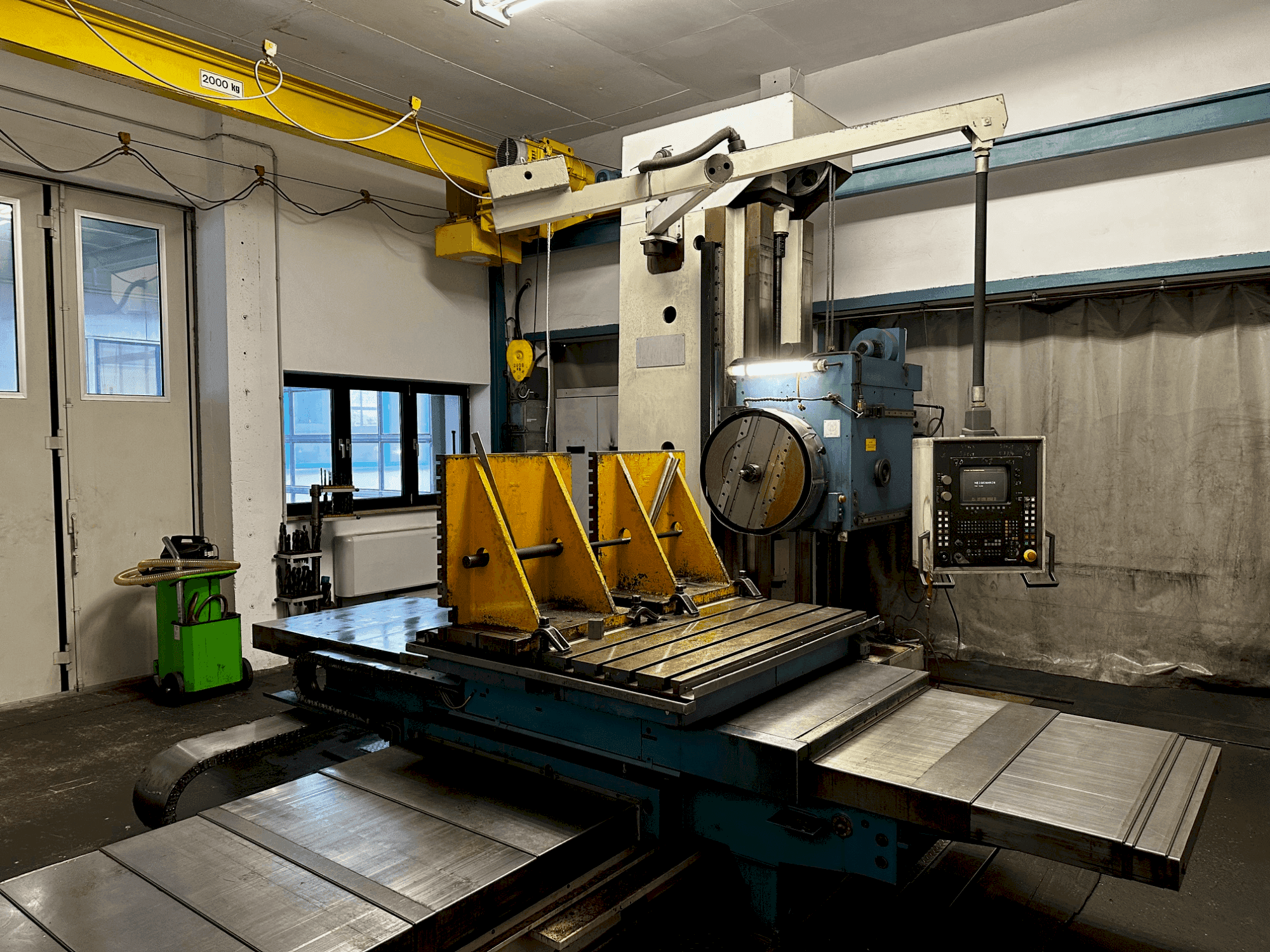

This UNION BFT 110 Boring machine was manufactured in 1996 in Germany. It is equipped with a HEIDENHAIN 415 B control unit. The machine disposes of 5 axis: X (1985 mm), Y (1620 mm), Z (1960 mm), W (710 mm) and U (250 mm).

Overview

brand: UNION
year: 1996
MODEL: BFT 110
application type: Other Machine Tools
Location: Germany
machine type: Boring Machine (Metal)
control unit brand: HEIDENHAIN

Technical Information - UNION BFT 110

General Data

Measurements width: 5900 mm
Measurements depth: 7400 mm
Measurements height: 4500 mm
Machine weight: 22000 kg

Control Unit

Model: 415 B
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 1250 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 1985 mm
Y-AXIS Movement: 1620 mm
Z-AXIS Movement: 1960 mm
U-Axis Movement: 250 mm
W-Axis Movement: 710 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Drilling spindle Ø 110 mm
- - Tool holder sk 50
- - Ø plan support 700 mm
- - Table clamping area 1400 x 1600 mm max. Table load
- - T-slot width / distance 28/160 mm
- - Speed range plan support 6… 312 rpm
- - Drill spindle torque 2500 nm
- - Torque plan support 3400 nm
- - Rapid traverse 6. 3 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
