➤ Used DMG MORI CMX 50U For Sale | gindumac.com

Show in original language

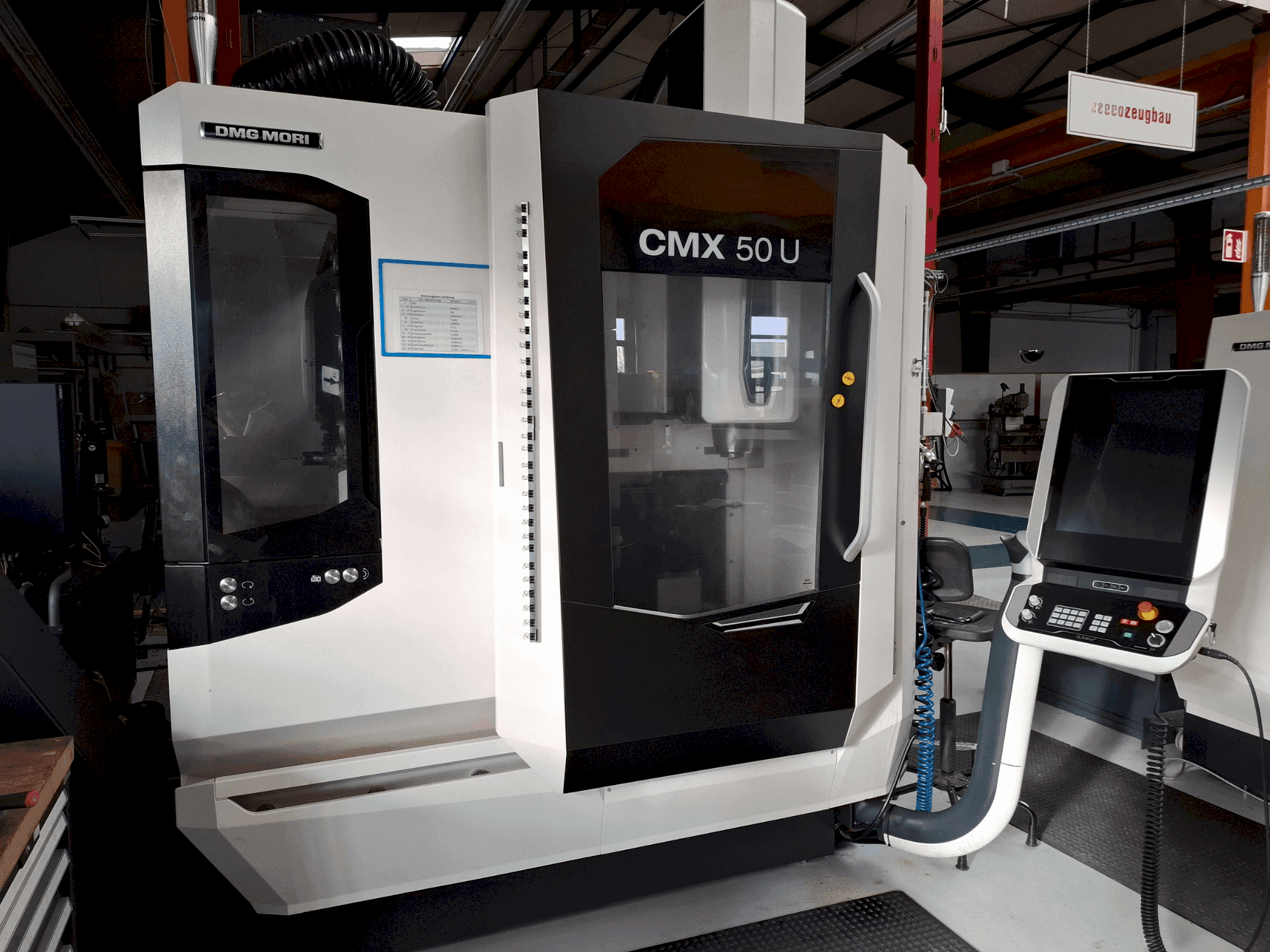

This 5-axis DMG MORI CMX 50U vertical machining center was manufactured in 2019. If you are looking to get high-quality milling capabilities, consider the DMG MORI CMX 50U machine we have for sale. Contact us for more information.

Overview

brand: DMG MORI
year: 2019
MODEL: CMX 50U
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN TNC 620 S

Technical Information - DMG MORI CMX 50U

General Data

Measurements width: 3035 mm
Measurements depth: 2910 mm
Measurements height: 2710 mm
Machine weight: 4700 kg

Control Unit

Brand: HEIDENHAIN TNC 620 S

Main drive

Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 13 kW
Number of axis: 5

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 400 mm
B-AXIS Movement: 5° / +110°
C-AXIS Movement: ±360°

Tools

Type of tool holder: SK40 / BT40

Clamping unit

Clamping force: 10 kN

Additional Information

Additional equipment

Coolant Spray Gun
Infrared Measurement Probe
Paper Band Filter with Tank Capacity 600L
Chip Conveyor (Scraper Band) with Tank Capacity 250L (Left)
Internal Coolant Supply 40 Bar
Bed and ATC (Automatic Tool Changer) Flushing via M-function
Oil and Emulsion Mist Separator
Cabin Roof
Blow Air through Spindle Center (can be activated)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
