- ➤ Used DMG MORI M1 PRO | Vertical Centre For Sale

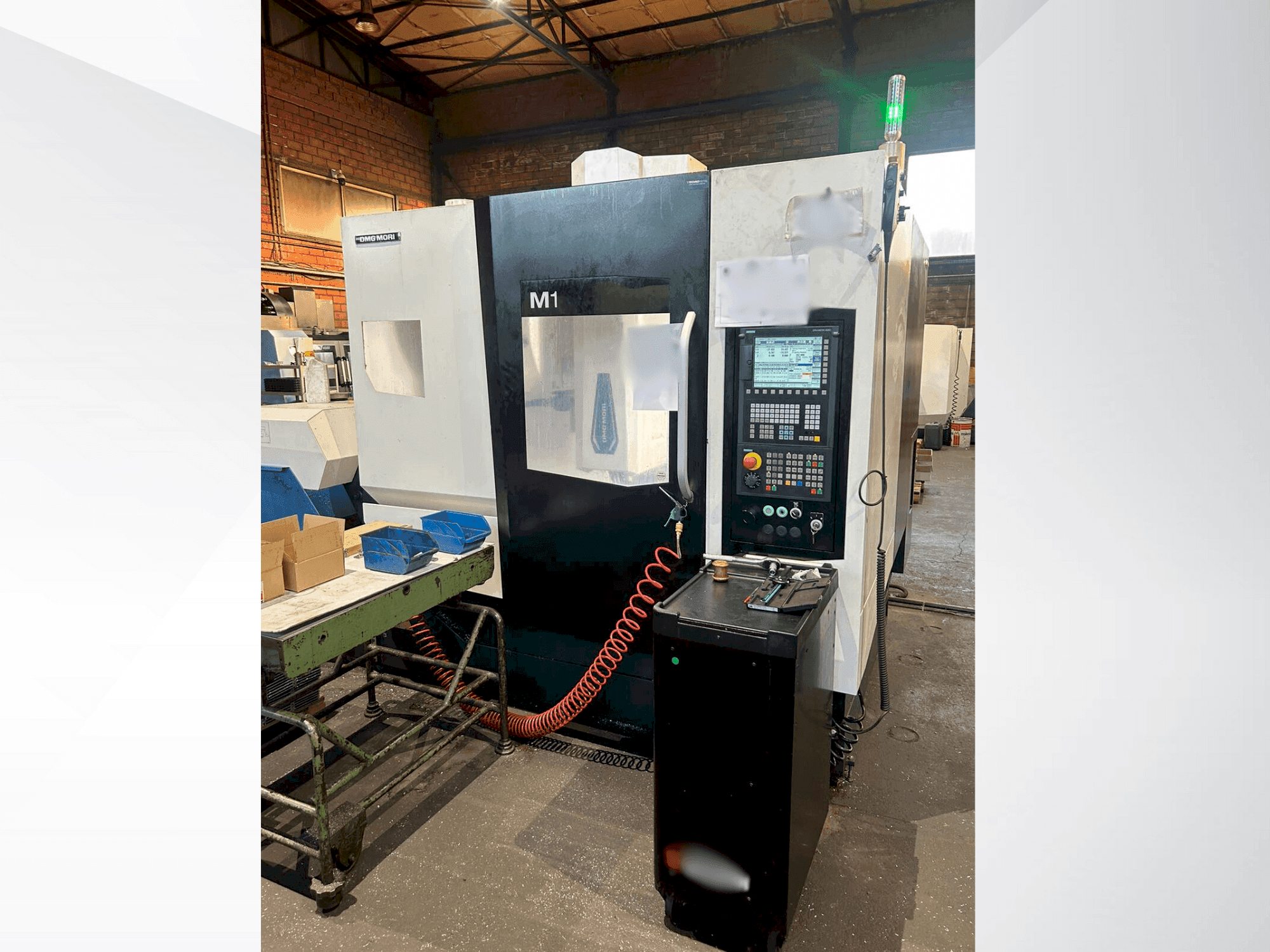

This 3-axis DMG MORI M1 PRO vertical machining center was manufactured in 2020. It features a robust SK40 spindle with speeds up to 12,000 rpm and a torque of 83/57 Nm. Equipped with a 24-slot tool magazine, rapid feed rates reach 24 m/min across X/Y/Z axes. The machine includes a high-pressure coolant system and a chip conveyor, enhancing productivity and maintenance. Ideal for precision machining, buy this DMG MORI M1 PRO vertical machining center. Contact us for more information.
Overview
- brand: DMG MORI
- year: 2020
- MODEL: M1 PRO
- application type: Milling
- Location: Greece
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - DMG MORI M1 PRO
Control Unit
- Control Brand: SIEMENS
- Control Model: C-B3096F
Dimensions
- Table Length: 850 mm
- Table Width: 650 mm
Movement
- X-axis Travel: 550 mm
- Y-axis Travel: 550 mm
- Z-axis Travel: 510 mm
Technical Specification
- Number of Tools: 24
- Spindle Speed: 12000 RPM
Additional Information
Additional equipment
- Mechanical Preparation for Oil-Mist Extractor Unit (Opening Diameter: D150 mm)
- Renishaw Touch Probe-Kit
- Spray Gun
- Cabin Roof
- Real-time simulation
- Measuring cycles
- DMG MORI IoTconnector and NETservice
- Machine 3D Model in STEP Format
- External Electronic Handwheel (C-H3025F)
- ShopMill
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
