DMG MORI - HSC 105HU-MIL-DMG-2021-00003

Name: DMG MORI HSC 105
Brand: DMG MORI
SKU: HU-MIL-DMG-2021-00003
Price: 56869150 INR
Availability: InStock

Rs. 56,869,150

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI HSC 105 For Sale | gindumac.com

Show in original language

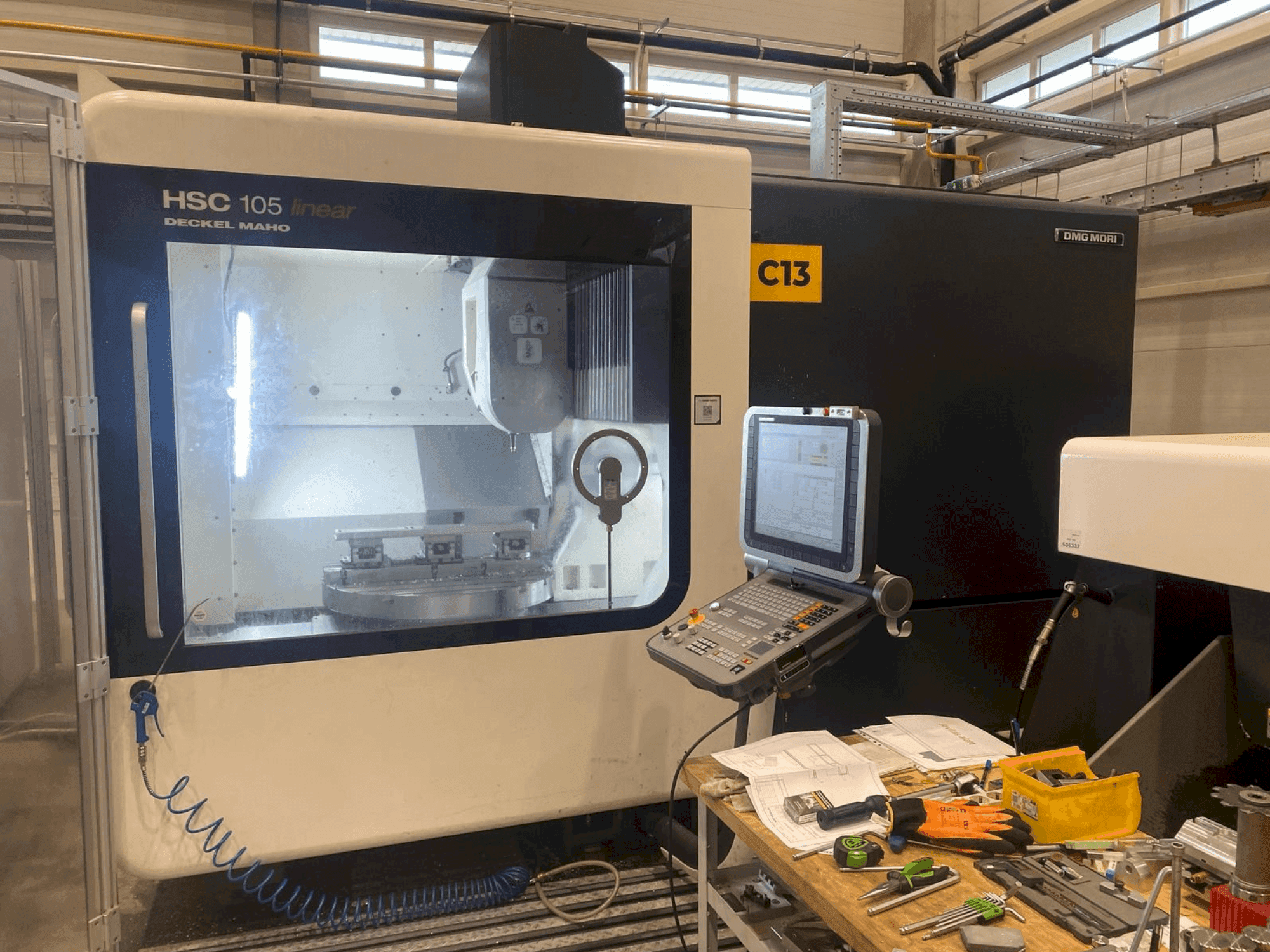

This 5-axis DMG MORI HSC 105 universal machining center was manufactured in 2021. It offers advanced capabilities for precision machining. Consider the opportunity to buy this DMG MORI HSC 105 universal machining center. Contact us for more information.

Overview

brand: DMG MORI
year: 2021
MODEL: HSC 105
application type: Milling
Location: Hungary
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG MORI HSC 105

Control Unit

Brand: HEIDENHAIN
Model: iTNC530 HSCI

Main drive

Spindle speed range: 20-28000 rpm 1/MIN
Spindle motor power: 55/43.5 kW (40/100%DC)

Movement

X-AXIS Movement: 1050 MM
Y-AXIS Movement: 800 MM
Z-AXIS Movement: 560 MM

Additional equipment

- Tool Taper: HSK-A63 DIN 69893 / Tool Magazine: 30-position disk tool magazine, 60-position pickup chain type
- Scraper Belt Chip Conveyor and Machine Bed Flushing / Separate Water Treatment Unit: 980-liter tank and paper filter / Pump: 40 bar / 23 l/min for internal cooling through spindle / Extended Chip Flushing / Rotating Inspection Window / Manual Coolant Flushing Gun / Internal Compressed Air Cooling: Through spindle / EROWA Pallet Handling System Preparation
- Documentation: English, Hungarian / Display Text: German/Hungarian / Screen Text: German/Hungarian
- DMG MORI Monitoring: D-ME406* DMG MORI Messenger V4 / DMG MORI Software Solutions: DMG MORI Service Agent, DMG MORI NETSERVICE, DMG MORI IoTconnector

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid traverse speed: 90 m/min
- - Mounting surface: Ø 950 mm / b-tilt range: +10/-110° / c-rotation range: 360° / maximum table weight: 800 kg
- - 3d-controller heidenhain itnc530 hsci / operator interface: smart. Nc
- - Cooling: active cooling for spindle and linear drive
- - Mpc machine protection control / direct measuring system: with pressurized air cleaning / active cooling: electrical switch cabinet / additional cooling: external compressed air cooling

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
