➤ Used DMG MORI CMX 800V For Sale | gindumac.com

Show in original language

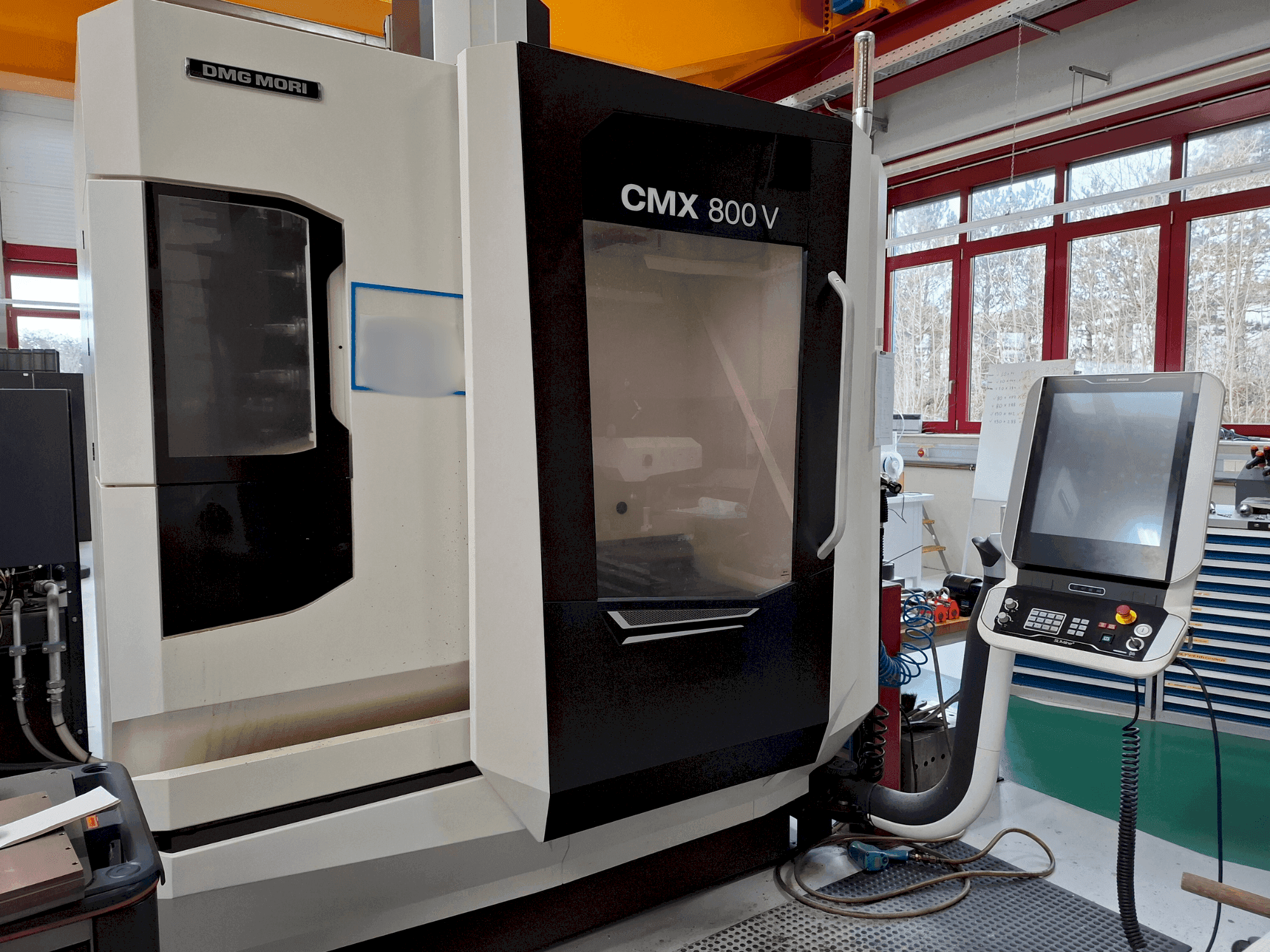

This 3-axis DMG MORI CMX 800V was manufactured in 2019, offering advanced capabilities for precise vertical machining. Ideal for complex geometries and multi-sided machining, this machine represents a significant asset for enhancing production efficiency. Consider the opportunity to buy this DMG MORI CMX 800V vertical machining centre. Contact us for more information about this machine.

Overview

brand: DMG MORI
year: 2019
MODEL: CMX 800V
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - DMG MORI CMX 800V

Main drive

Spindle speed range: 12000 1/MIN
Main motor power: Max. drive power 40% duty cycle: 13 kW; Rated power 100%: 9 kW
Number of axis: 3

Movement

X-AXIS Movement: 800 mm
X-AXIS Feed Force: 20000 mm/min
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 560 mm
Y-AXIS Feed Force: 20000 mm/min
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 510 mm
Z-AXIS Feed Force: 20000 mm/min
Z-AXIS Rapid traverse: 30 m/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Torque: max. Spindle torque 40% duty cycle: 82 nm; rated torque 100%: 54 nm
- - The warm-up time before machining starts for oil distribution includes 30 seconds at a maximum of 500 rpm, followed by a stepwise speed increase to a maximum of 1500 rpm and 3000 rpm for another 30 seconds.
- - The run-in time after more than 6 months of standstill includes 5 minutes at a maximum of 2000 rpm, followed by a stepwise speed increase to a maximum of 4000 rpm and 6000 rpm for another 5 minutes.
- - Tool clamping force sk40/bt40: 10 kn
- - Tool clamping force cat40: 9 kn
- - Ac servo motors for x, y, z axes
- - Resolution: x, y, z axes: 6 μm
- - Positioning uncertainty: p (according to iso 13041-4): x, y, z: 6 μm
- - Input precision (control): x, y, z axes: 1 μm
- - Setup mode (mode 2): x, y, z axes: 20-2000 mm/min a, c axes: 2. 6 rpm
Qualitative Machine Benefits:
- - Setup mode (mode 3): x, y, z axes: 20-5000 mm/min a, c axes: 6. 6 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
